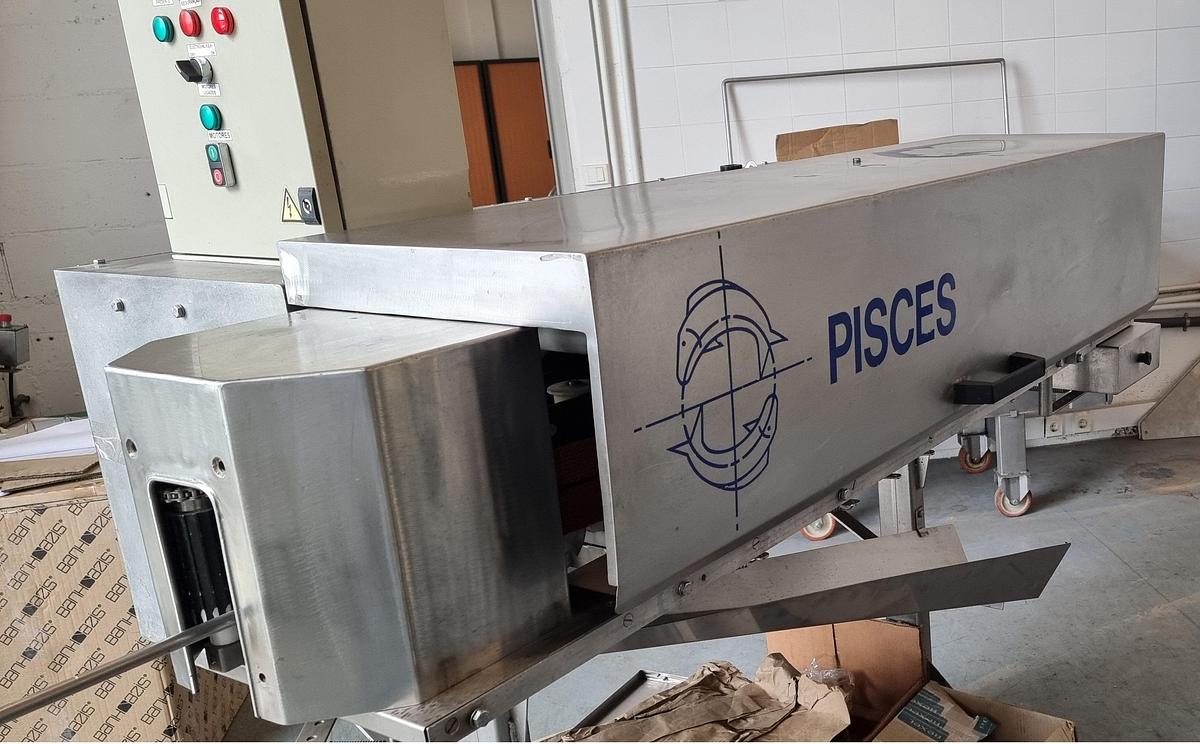

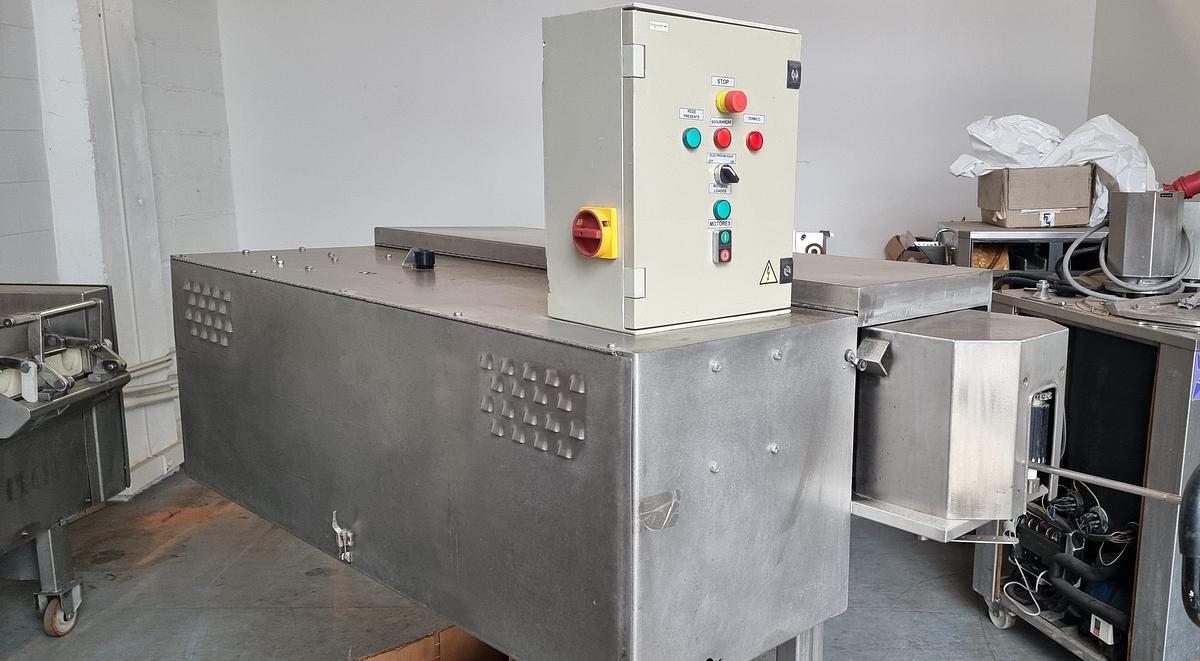

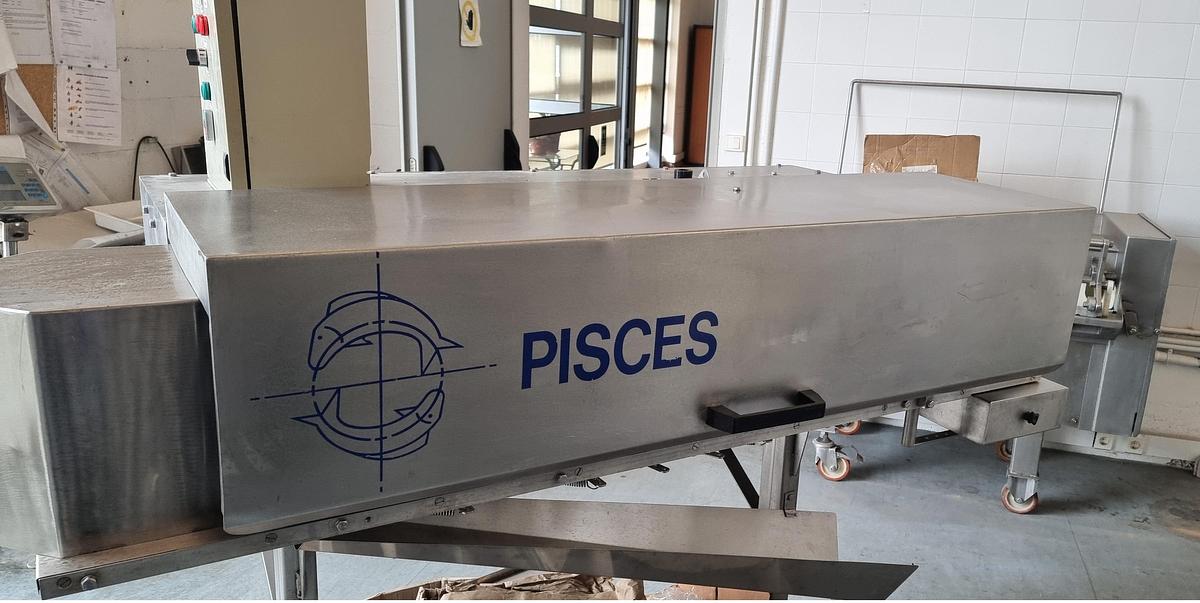

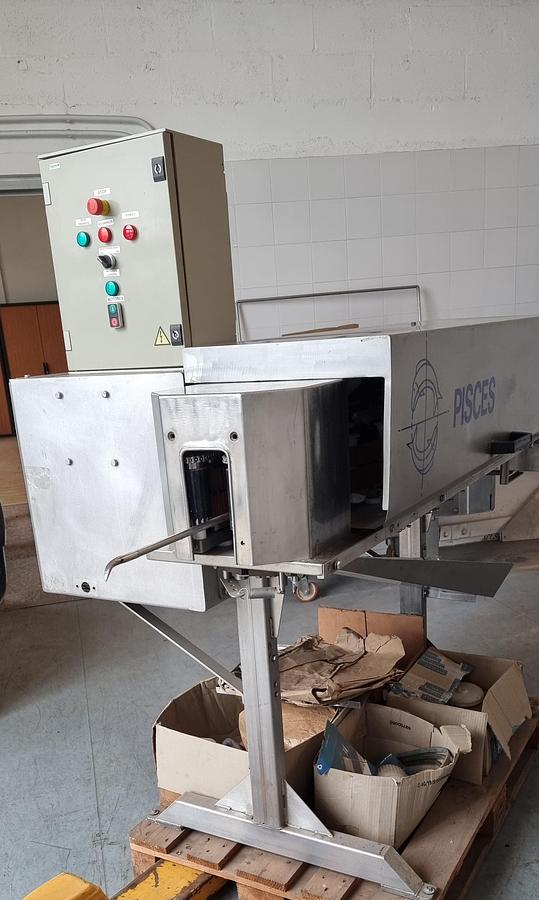

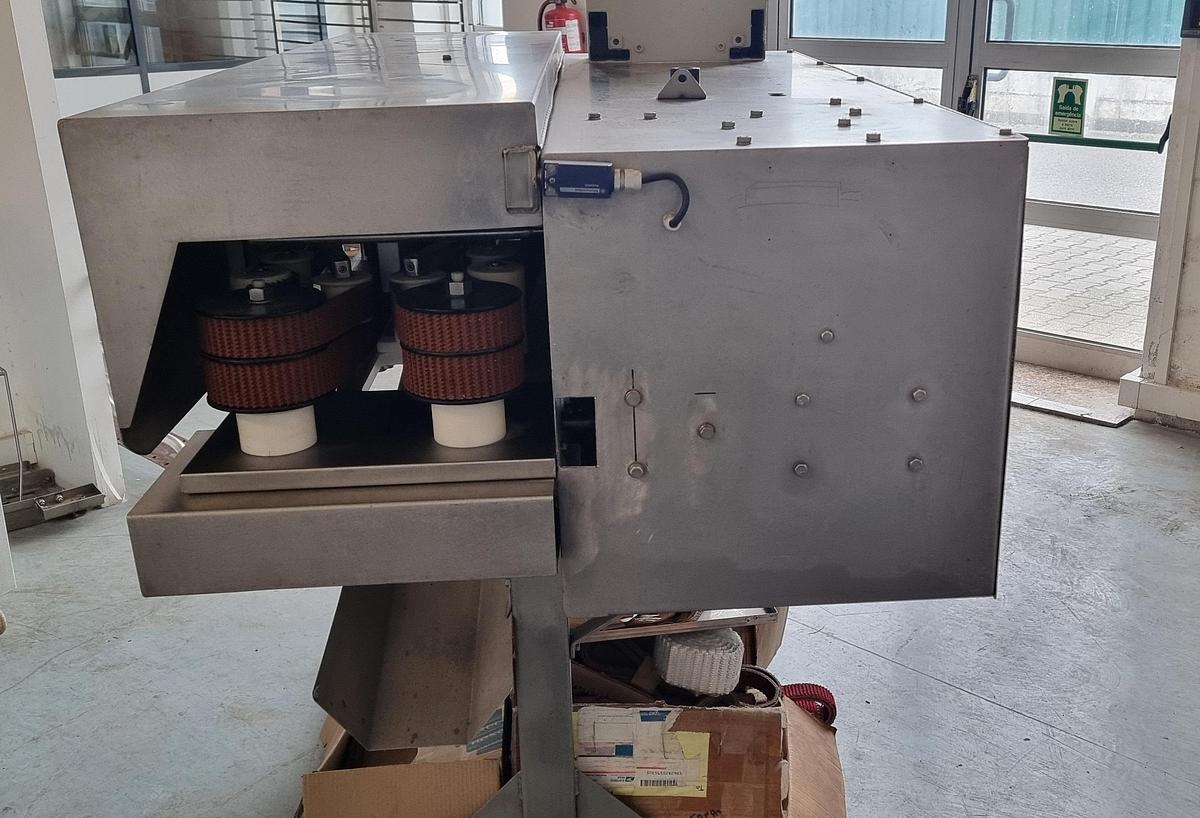

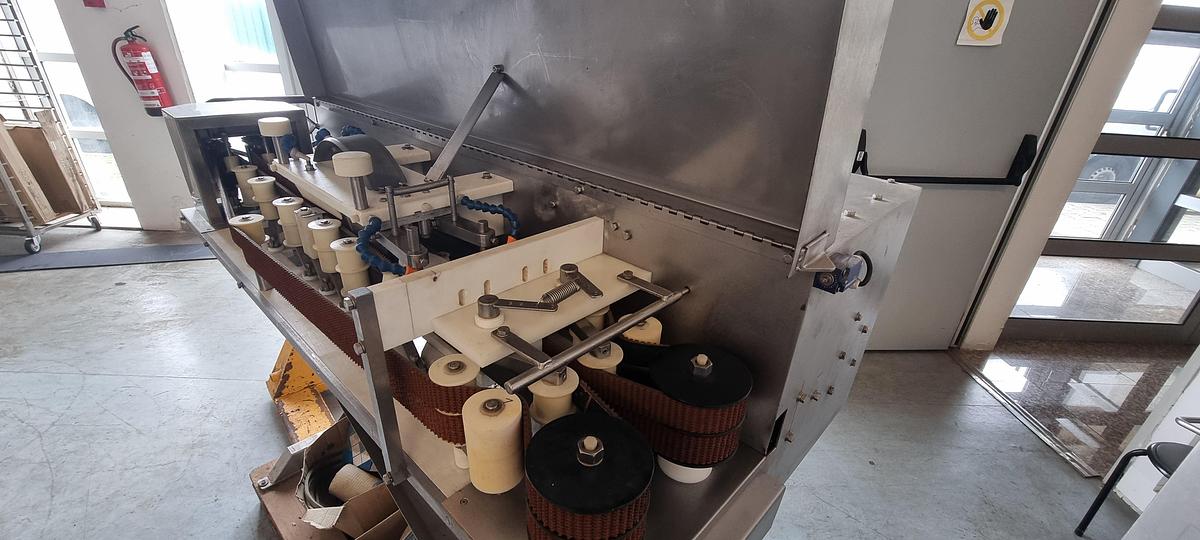

Piscis FR200 "J Type"

The Pisces FR-200 , "J" Type is a high-speed, automated fish filleting machine designed for medium to large fish species, offering efficient processing with minimal manual intervention.​

Operation Overview

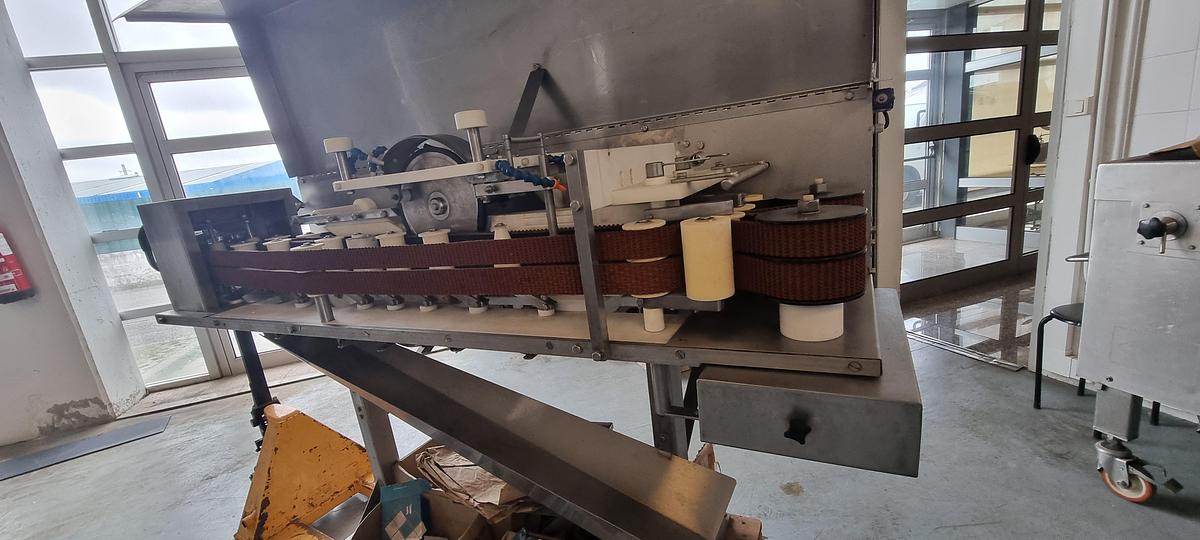

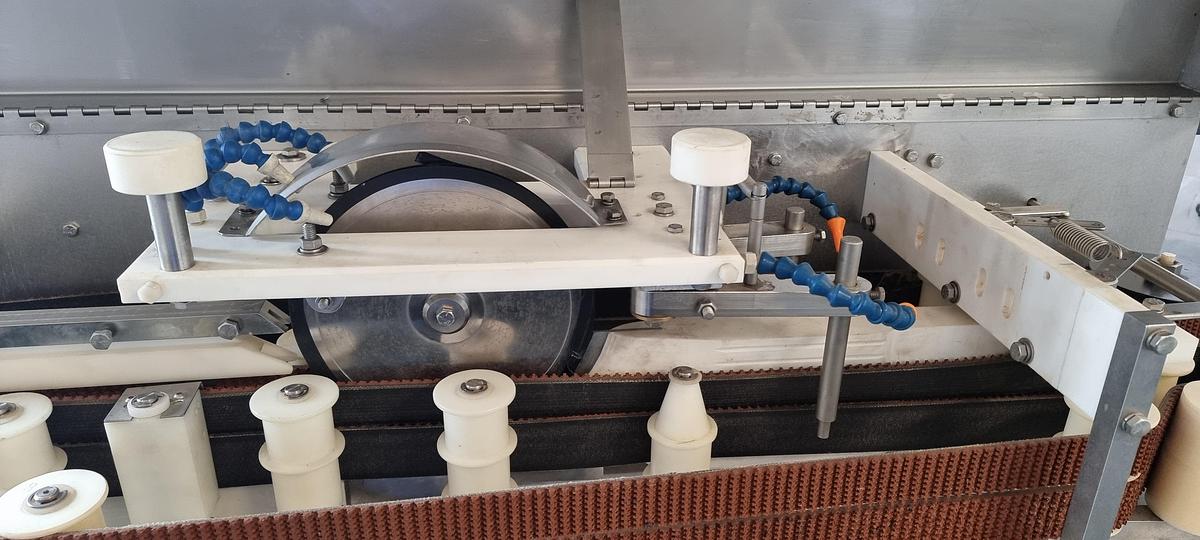

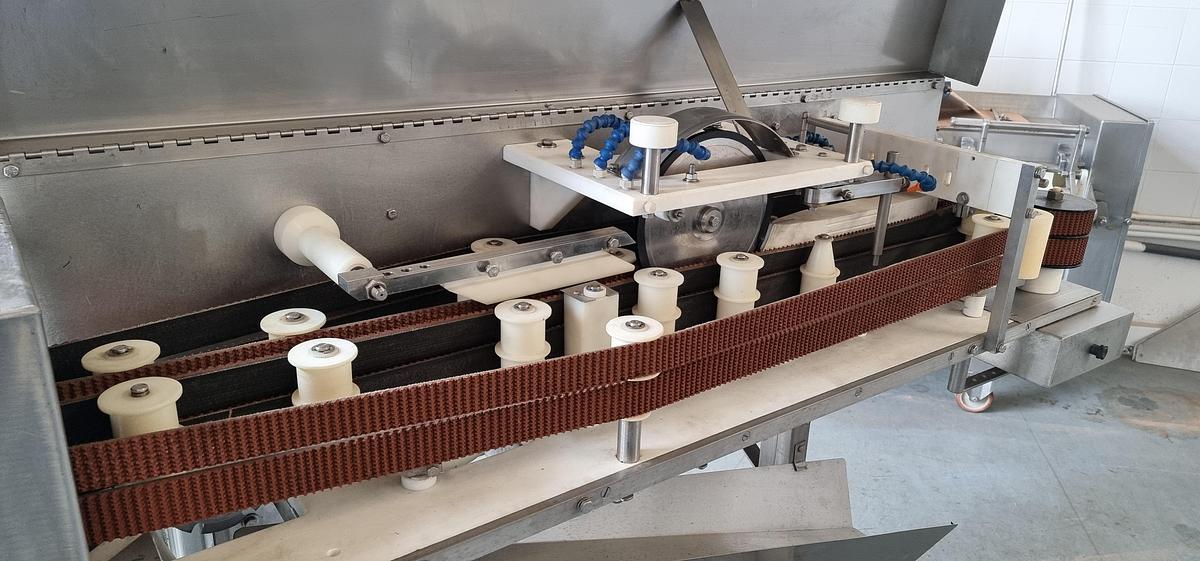

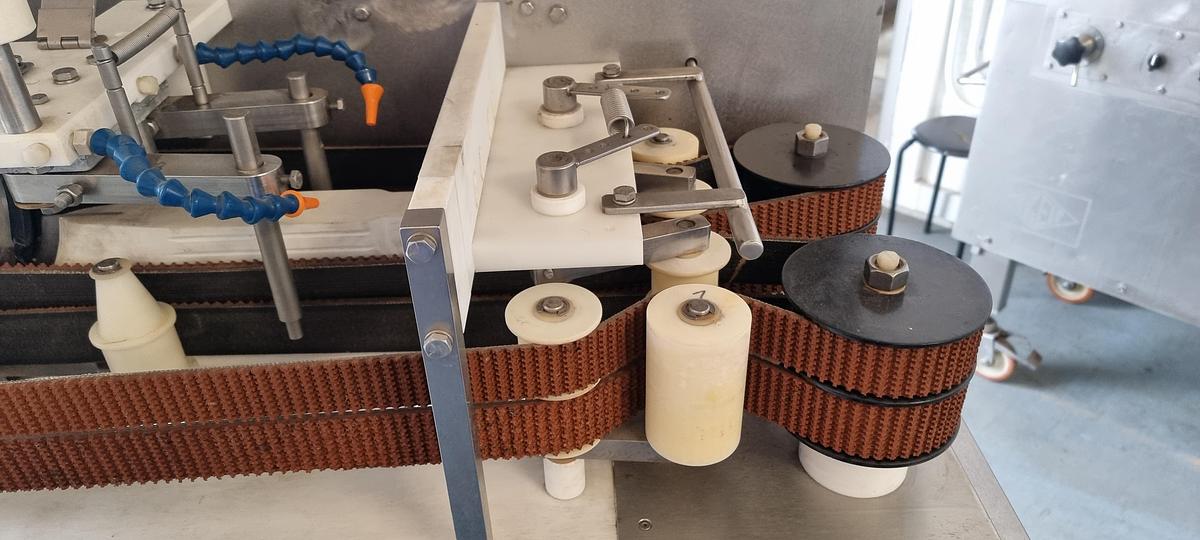

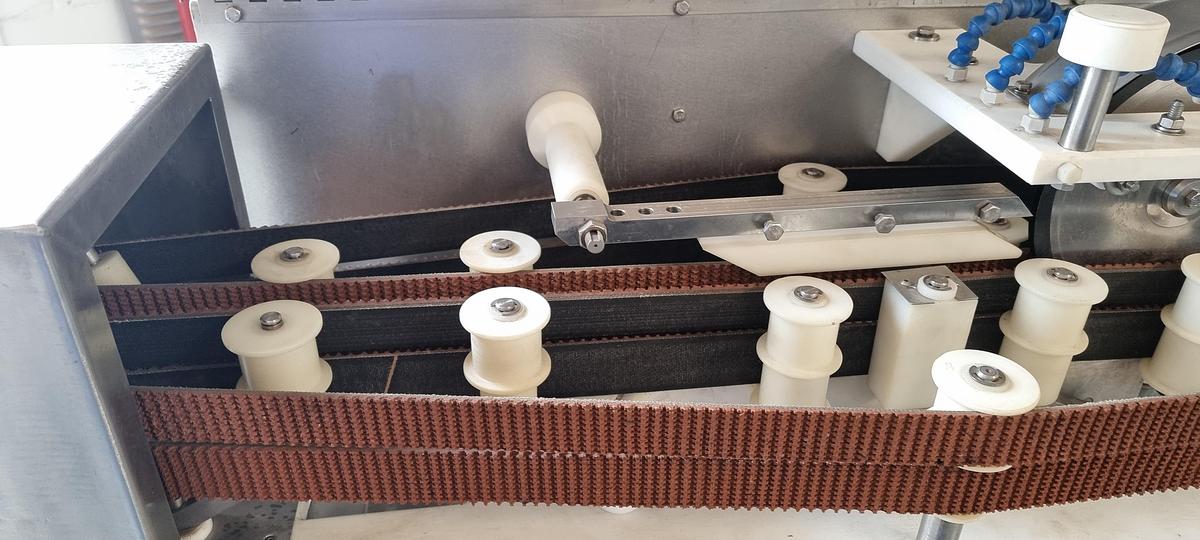

The FR-200 processes head-off fish, either eviscerated or non-eviscerated. Fish are placed onto the feed system, transported by drive belts over belly cutting blades and a cleaning wheel, then past backbone removal blades. The backbone and offal are ejected into a waste chute. The two halves are guided past and ejected.

The machine can be transforme to a full FR200

Key Features

• Fish Size Range: Capable of processing fish weighing between 300 grams to 2 kilograms, including species like trout, salmon, tilapia, sea bass, and sea bream. ​
• Processing Speed: Handles up to 40 fish per minute, depending on species and size.
• Fillet Quality: Designed to produce single fillets free of backbone, ensuring high yield and quality.
• Operation: Requires only one operator, enhancing labor efficiency. ​
• Adjustability: Features easy and fast adjustments to accommodate different fish sizes, utilizing the internal bone structure for precise cuts.
• Hygienic Design: Open and hygienic construction facilitates easy cleaning and maintenance, meeting CE machine directives. ​

Technical Specifications

• Dimensions: Approximately 2493 mm (L) x 957 mm (W) x 1270 mm (H). ​
• Weight: Net weight of 331 kg; crated weight of 450 kg. ​
• Power Requirements: 3 kW, 220V, 12.4 A full load.
• Water Usage: Approximately 12 liters per minute, with a standard ½-inch garden hose connection.
• Belt Speed: 60 feet per minute. ​
